Previously[1] I looked at some of the properties of the mysterious dimer of nitric oxide  1 – not the known weak dimer but a higher energy form with a “triple” N≡N bond. This valence bond isomer of the weak dimer was some 24 kcal/mol higher in free energy than the two nitric oxide molecules it would be formed from. An energy decomposition analysis (NEDA) of 1 revealed an interaction energy[2] of +4.5 kcal/mol for the two radical fragments, compared to eg -27 kcal/mol for the equivalent analysis of the N=N double bond in nitrosobenzene dimer[3] So here I take a look at another property of N≡N bonds via their hydrogenation energy (Scheme), mindful that the dinitrogen molecule requires forcing conditions to hydrogenate, in part because of the unfavourable entropy terms (See Wiki and also here^‡ for a calculation of ΔG₂₉₈).

Calculations at the ωB97XD/Def2-TZVPP/SCRF=water level[4] that whilst hydrogenation of the triple bond in N₂ is strongly endo-energic, the same process for molecule 1 is exo-energic (ΔΔG -26.32 kcal/mol). The direct product is a zwitterion, but presumed rapid proton transfer to a neutral form 2 increases exo-energicity. Whilst the second hydrogenation step  of N₂ is  exo-energic, the equivalent second step for 1 to  give 3 is now mildly endo-energic. Overall however, the thermodynamic energies of these two types of triple bond hydrogenation could not be more different.

So forming a N≡N triple bond by forcing two nitric oxide molecules to dimerise (using high pressure) in water produces a system where hydrogenation of that “difficult” N≡N bond is made very much easier thermodynamically. Time for an experiment?^♥

^‡This site reports a gas phase experimental value for ΔG -8.1 kcal/mol at 298K for this equilibrium, although the pressure is not given. The calculated value shown in the scheme above (-20.1 kcal/mol)  is for 298K and 1 atm for a model using water as solvent – which might be expected to differentially solvate the product ammonia and hence promote the reaction. In the limit of low pressure (0.0001M)[5] this reduces to -13.0 kcal/mol, increases to -26.6 kcal/mol at 10M and becomes -14.3 kcal/mol at 10M/800K, illustrating how higher pressures make the reaction more exo-energic and higher temperatures less exo-energic. This was of course the problem solved in the Haber process of finding the sweet spot between pressure and temperature.

^♥Perhaps not, given the report that at high pressures, nitric oxide can become explosive.[6]

References

1. H. Rzepa, "The even more mysterious N≡N triple bond in a nitric oxide dimer.", 2025. https://doi.org/10.59350/rzepa.29429
2. H. Rzepa, "N2O2 as strong dimer? bent NEDA 0 1 0 2 0 -2 Total Interaction (E) : 4.520 Wiberg NN bond index 1.0072 NN stretch 2604 cm-1", 2025. https://doi.org/10.14469/hpc/15468
3. H. Rzepa, "Nitrosobenzene dimer NEDA=2, 0,1 0,1 0,1 Total Interaction (E) : -27.564", 2025. https://doi.org/10.14469/hpc/15444
4. H. Rzepa, "Hydrogenating the even more mysterious N≡N triple bond in a nitric oxide dimer.", 2025. https://doi.org/10.14469/hpc/15516
5. G. Luchini, J.V. Alegre-Requena, I. Funes-Ardoiz, and R.S. Paton, "GoodVibes: automated thermochemistry for heterogeneous computational chemistry data", F1000Research, vol. 9, pp. 291, 2020. https://doi.org/10.12688/f1000research.22758.1
6. T. Melia, "Decomposition of nitric oxide at elevated pressures", Journal of Inorganic and Nuclear Chemistry, vol. 27, pp. 95-98, 1965. https://doi.org/10.1016/0022-1902(65)80196-8

I started adding citations to my blog posts around 2012 using the Kcite plugin.^‡ Rogue Scholar is a service that monitors registered blog sources and adds all sorts of value to the original post, including identifying such citations and creating a list of them.

I show the results for the previous blog[1] here.

Martin Fenner has just added some interesting new features[2] which I thought would be useful to share with you here.

1. If you go to the Rogue Scholar archive of the post and scroll down to the References list, then click on the title of any of the references, you will get a list of all Rogue Scholar posts citing that reference: https://rogue-scholar.org/search?q=doi:10.1038/sdata.2016.18+references:10.1038/sdata.2016.18+citations:10.1038/sdata.2016.18
2. If you click on the author name in any of the entries from the previous search, you get a list of all the posts published by that person.
   https://rogue-scholar.org/search?q=orcid:0000-0002-8635-8390&sort=newest

I think this idea of adding citations to a blog post can result in a considerably enhanced discovery process – if only you could do this with journals themselves!

^‡ This is temporarily not functional due to a php update on the site. I hope to get it working again soon. Update. Thanks to Martin Fenner, the Kcite plugin is working again at version 1.7.11 and upwards.[3]

References

1. H. Rzepa, "More on rescuing articles from a now defunct early pioneering example of an Internet journal.", 2025. https://doi.org/10.59350/rzepa.29523
2. M. Fenner, "Rogue Scholar links records via ORCID and DOI", 2025. https://doi.org/10.53731/yjq4w-5yr32
3. M. Fenner, "Adding references to Wordpress posts: updated kcite plugin", 2025. https://doi.org/10.53731/326tr-95k32

Two years ago, I posted on the topic “Internet Archeology: reviving a 2001 article published in the Internet Journal of Chemistry (IJC)”.[1] The IJC had been founded in 1998,[2]  in part at least to “re-invent” the scholarly journal by elevating research data to being a more integrated part of the overall article, rather than as the previously conventional addendum of SI (Supporting Information)^‡. IJC was in one sense following on from an earlier such project dating from 1995[3] by taking it to the next level. Sadly, the pioneering IJC journal had gone off-line in 2004 and the content for around 100 articles was thought lost. It happened that I still retained the original source and associated data for one article of mine and my post[1] described how I managed to get it back into more or less full working order. Now Egon Willighagen[4] has cleverly found a way of rescuing many more of these lost articles, thanks to various Web-based infrastructures:

1. From 1996 as the Internet archive (using a query such as https://web.archive.org/web/*/http://www.ijc.com/abstracts/*),
2. From 2012, WikiData (see https://www.wikidata.org/wiki/Q27211732)
3. Also from 2012, ORCID (Resarcher and collaborator) profiles. Some reserchers had the foresight (alas not me) to link their by then defunct IJC articles to their new ORCID profiles.

I link here to some examples of rescued articles as shown on Egon’s blog. I eagerly look forward to seeing what else is to come using such tools!

^‡ By around 2005, a clearer separation between the journal (the “story” or research narrative) and its associated research data was being seen as the way forward, with the data now being placed in a data repository (or Wikidata) separate from the journal, with added descriptive metadata to help make it a stand-alone object and this new entity to now be cited in the journal article (and bidirectionally the article from the data) using a persistent identifier – initially as a Handle, then as a DOI.[5] FAIR data as a concept had started to emerge from these developments, being formalised around a decade later in 2016.[6]

This post has DOI:10.59350/rzepa.29523

References

1. H. Rzepa, "Internet Archeology: reviving a 2001 article published in the Internet Journal of Chemistry.", 2024. https://doi.org/10.59350/xqerh-wam97
2. S.M. Bachrach, and S.R. Heller, "The<i>Internet Journal of Chemistry:</i>A Case Study of an Electronic Chemistry Journal", Serials Review, vol. 26, pp. 3-14, 2000. https://doi.org/10.1080/00987913.2000.10764578
3. D. James, B.J. Whitaker, C. Hildyard, H.S. Rzepa, O. Casher, J.M. Goodman, D. Riddick, and P. Murray‐Rust, "The case for content integrity in electronic chemistry journals: The CLIC project", New Review of Information Networking, vol. 1, pp. 61-69, 1995. https://doi.org/10.1080/13614579509516846
4. E. Willighagen, "The Internet Journal of Chemistry", 2025. https://doi.org/10.59350/2ss5b-jpr33
5. J. Downing, P. Murray-Rust, A.P. Tonge, P. Morgan, H.S. Rzepa, F. Cotterill, N. Day, and M.J. Harvey, "SPECTRa: The Deposition and Validation of Primary Chemistry Research Data in Digital Repositories", Journal of Chemical Information and Modeling, vol. 48, pp. 1571-1581, 2008. https://doi.org/10.1021/ci7004737
6. M.D. Wilkinson, M. Dumontier, I.J. Aalbersberg, G. Appleton, M. Axton, A. Baak, N. Blomberg, J. Boiten, L.B. da Silva Santos, P.E. Bourne, J. Bouwman, A.J. Brookes, T. Clark, M. Crosas, I. Dillo, O. Dumon, S. Edmunds, C.T. Evelo, R. Finkers, A. Gonzalez-Beltran, A.J. Gray, P. Groth, C. Goble, J.S. Grethe, J. Heringa, P.A. ’t Hoen, R. Hooft, T. Kuhn, R. Kok, J. Kok, S.J. Lusher, M.E. Martone, A. Mons, A.L. Packer, B. Persson, P. Rocca-Serra, M. Roos, R. van Schaik, S. Sansone, E. Schultes, T. Sengstag, T. Slater, G. Strawn, M.A. Swertz, M. Thompson, J. van der Lei, E. van Mulligen, J. Velterop, A. Waagmeester, P. Wittenburg, K. Wolstencroft, J. Zhao, and B. Mons, "The FAIR Guiding Principles for scientific data management and stewardship", Scientific Data, vol. 3, 2016. https://doi.org/10.1038/sdata.2016.18

Previously, I pondered about the strange N=N double bond in nitrosobenzene dimer[1] as a follow up to commenting on the curly arrow mechanism of the dimerisation.[2] By the same curly arrow method, one can produce the below, showing how the simpler nitric oxide radical could potentially dimerise to a species with a N≡N triple bond!^† This involves a total of six electrons entering the N-N region, and hence raises the question of whether these all move in a single concerted/synchronous bond forming reaction, or whether they might go in (asynchronous) stages. Here are some calculations[3]) which might shed some light on this aspect.

The structure[4] of a nitric oxide dimer was shown in 1982 to have a very long (rather than short) N-N bond length of 2.237Å and a theoretical analysis[5] showed it to be a weak complex with a very complex wavefunction showing multi-reference character.

Firstly, an IRC-based reaction path (method: uωB97XD, scrf=(cpcm,solvent=water) guess=(mix,always) def2tzvpp to allow either an open shell biradical to form and also to encourage any ion pair formation). As you can see, the (total) energy goes up to a very  shallow transition state (with a tiny reverse barrier) to form a biradical  with <S²> 0.628. This species, as noted existing in a very shallow energy well, has an N-N bond length of 1.725Å.

The bonding for this species is complex (analysis for a later post), but the calculated biradical spin density below shows the unpaired electrons are in the π-system (click on the image to get a 3D rotatable model).

Further contraction of the N-N length results in an IRC energy potential to a transition state with a N-N length 1.294Å across a further barrier of ~12 kcal/mol (ΔE; ΔG 13.6 kcal/mol). The overall barrier from two nitric oxide molecules is ΔG 31.0 kcal/mol with the overall thermochemistry summarised in the table. Basically, this barrier is unsurmountable at normal temperatures and the reverse barrier of ΔG 6.7 kcal/mol ensures that the N≡N triple bonded species shown above is not likely stable and will not be observed experimentally.^‡ However this product is NOT a biradical but a normal closed shell singlet molecule.[6]

So to answer my first question, the six electrons appear to move in two stages, firstly two electrons form a weak N-N bond and then a further four electrons contract this to a triple bond. Their motion is effectively concerted, but asynchronous.

Now for a NEDA energy decomposition analysis[11]

Electrical (ES+POL+SE) :  -9414.608
   Charge Transfer (CT) :  -1363.597
       Core (XC+DEF-SE) :  10782.725
  Total Interaction (E) :      4.520 kcal/mol.

Normally NEDA total interaction energies are -ve, but this one is positive! So the triple bond dissociation energy is not merely small, but actually negative. That is a weak triple bond and as the title implies, a very mysterious bond. In some aspects however it is conventional. Thus calculated r_NN 1.114Å and ν_NN 2604 cm^-1. However partial occupancies of NBO antibonding BD* orbitals results in a calculated Wiberg bond order of only 1.01; there is still a great deal of mystery left about this species! Probably what is fairly certain is that the closed shell single-reference wavefunction used here is not appropriate for a full explanation and more complex multi-reference procedures would have to be used to get a more complete picture of this strange non-existing^‡ little molecule. It may even be that such procedures remove the small reverse barrier noted above, thus preventing the molecule from even existing in an energy well.

^†This species does not appear to have been previously discussed or suggested, according to SciFinder/CAS.
^‡Might it exist at very high pressures in water?

To find all blog posts authored here, along with their DOIs, try https://rogue-scholar.org/search?q=orcid:0000-0002-8635-8390&sort=newest

References

1. H. Rzepa, "The mysterious N=N double bond in nitrosobenzene dimer.", 2025. https://doi.org/10.59350/rzepa.29383
2. H. Rzepa, "Mechanism of the dimerisation of Nitrosobenzene.", 2025. https://doi.org/10.59350/rzepa.28849
3. H. Rzepa, "N2O2 as strong dimer TS as biradical cis, G = -259.785500", 2025. https://doi.org/10.14469/hpc/15483
4. S.G. Kukolich, "The structure of the nitric oxide dimer", Journal of the American Chemical Society, vol. 104, pp. 4715-4716, 1982. https://doi.org/10.1021/ja00381a052
5. N. Taguchi, Y. Mochizuki, T. Ishikawa, and K. Tanaka, "Multi-reference calculations of nitric oxide dimer", Chemical Physics Letters, vol. 451, pp. 31-36, 2008. https://doi.org/10.1016/j.cplett.2007.11.084
6. H. Rzepa, "N2O2 as strong dimer? G = -259.796140, STABLE wavefunction!", 2025. https://doi.org/10.14469/hpc/15474
7. H. Rzepa, "Nitric oxide monomer, G = -129.917471 *2 = -259.834942", 2025. https://doi.org/10.14469/hpc/15472
8. H. Rzepa, "N2O2 as strong dimer singlet trans biradical state G = -259.807165", 2025. https://doi.org/10.14469/hpc/15476
9. H. Rzepa, "N2O2 as strong dimer triplet state G = -259.808649 DG 16.5", 2025. https://doi.org/10.14469/hpc/15475
10. H. Rzepa, "N2O2 as strong dimer? bent G = -259.796140", 2025. https://doi.org/10.14469/hpc/15467
11. E.D. Glendening, and A. Streitwieser, "Natural energy decomposition analysis: An energy partitioning procedure for molecular interactions with application to weak hydrogen bonding, strong ionic, and moderate donor–acceptor interactions", The Journal of Chemical Physics, vol. 100, pp. 2900-2909, 1994. https://doi.org/10.1063/1.466432

In the previous post,[1] I introduced the N=N double bond in nitrosobenzene dimer, arguing that even though it was a formal double bond, its bond dissociation energy made it nonetheless a very weak double bond! This was backed up by a technique known as energy decomposition analysis or EDA. Here I use a variant of this method  known as  NEDA to look at some other strained alkenes, including the famously non-existent tetra t-Butyl ethene.

The NEDA procedure gives a fragment interaction energy (decomposing it into fundamental quantum mechanically derived energies if required) with respect to a reference state for the fragments. In this case, the fragments are obtained by cutting the double bond, resulting in triplet state carbenes as the reference state. The calculations (B3LYP+GD3+BJ/Def2-TZVPP) are available here.[2]

1. Compound 1, a relatively unstrained alkene, ΔE = -177.0 kcal/mol, R_CC 1.341Å
2. Compound 2 (PUVQUE, [3], [4]), ΔE = -164.3 kcal/mol, R_CC 1.362Å, CC torsion 16.5°
3. Compound 3 (CUBVOK, [5]) ΔE = -167.9 kcal/mol, R_CC 1.351Å, CC torsion 9.2°
4. Compound 4 (currently unknown) ΔE = -135.8 kcal/mol, R_CC 1.380Å, CC torsion 54.5°

The NEDA interaction energy is directly proportional to both the CC bond length and the C-C=C-C torsion angle. What is interesting however is the large interaction energy gap in ΔE between the two known hindered alkenes (2 and 3) and the unknown tetra-t-butyl ethene 4. It seems moving from say compound 2 by converting the two iso-propyl substituents to full t-butyl ones is just too large a change to bridge. Unless one day isolated as a very very unstable species, compound 4 seems destined not to exist!

This post has DOI: 10.59350/rzepa.29410

References

1. H. Rzepa, "The mysterious N=N double bond in nitrosobenzene dimer.", 2025. https://doi.org/10.59350/rzepa.29383
2. H. Rzepa, "Energy decomposition analysis of hindered alkenes: Tetra-tert-butyl ethene and others.", 2025. https://doi.org/10.14469/hpc/15463
3. R. Boese, W.R. Roth, D. Bläser, R. Latz, and A. Bäumen, "(<i>E</i>)-3,4-Diisopropyl-2,5-dimethylhex-3-ene at 125K", Acta Crystallographica Section C Crystal Structure Communications, vol. 54, pp. IUC9800055, 1998. https://doi.org/10.1107/s0108270198099247
4. R. Boese, W. Roth, D. Blaser, R. Latz, and A. Baumen, "CCDC 130610: Experimental Crystal Structure Determination", 1999. https://doi.org/10.5517/cc4cx7m
5. J. Deuter, H. Rodewald, H. Irngartinger, T. Loerzer, and W. Lüttke, "Kristall- und molekularstruktur von tetrakis(1-methylcyclopropyl)ethylen", Tetrahedron Letters, vol. 26, pp. 1031-1034, 1985. https://doi.org/10.1016/s0040-4039(00)98504-6

In an earlier blog, I discussed[1] the curly arrows associated with the known dimerisation of nitrosobenzene, and how the N=N double bond (shown in red below) forms in a single concerted process.

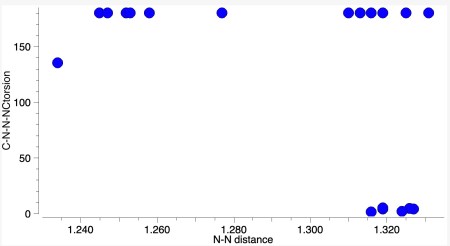

One of the properties of this molecule is that the equilibrium between the monomer and dimer can be detected[2], with significant concentrations of the dimer observed below 10°C. This dimer can even be crystalised, with around 20 well defined crystal structures known for the dimeric structure in the current version of the  CSD crystal structure dataset. Nitrosobenzene dimer itself forms a cis isomer, but others are known as trans (see below).

This detectable equilibrium means that the formal bond dissociation energy of that N=N bond must be very low – close to zero. This makes it an unusually weak double bond! Let’s explore how unusual by adopting a technique for analysing the energies in the molecule known as Natural Energy Decomposition Analysis or NEDA[3] (there are several other well-used methods for this, but I will concentrate on this one in this post at least). To explain what it is, I will paraphrase the NBO7 manual:

Natural energy decomposition analysis is an energy partitioning procedure for molecular interactions with contributions from Electrical interaction (EL), charge transfer (CT), and core repulsion (CORE) terms as evaluated for self-consistent field (SCF) wavefunctions.

1. The electrical term EL = ES + POL + SE arises from classical electrostatic (ES) and polarization interactions (POL+SE). SE is the linear response self energy (energy penalty) of polarization.
2. The CORE contribution CORE = EX + DEF − SE results principally from intermolecular exchange interactions (EX) and deformation (DEF), where the latter is the energy cost to distort a fragment wavefunction in the field of all other fragments of the complex. For DFT-based analysis, EX is replaced by the exchange-correlation interaction (XC).
3. The total interaction energy is then given by
4. ΔE = EL + CT + CORE

So now for some calculations[4]. To do this, one has to consider an appropriate reference state[5] for the two fragments of the molecule, in this case nitrosobenzene itself. This is expressed via a set of charge,multiplicity definitions for the supermolecule and all the fragments. For the nitrosobenzene dimer, two possibilities can be considered

1. 0,1 0,1 0,1 (which defines singlet states for all three species)
2. 0,1 0,3 0,-3 (which defines triplet states for the two fragments, with a “spin flip” for the second).

Firstly  I will calculate ΔE  (Z)-1,2-diphenylethene, which is a classical C=C double bond alkene.

1. For the reference state 0,1 0,3 0,-3

   Electrical (ES+POL+SE) :  -8691.975
      Charge Transfer (CT) :   -809.587
          Core (XC+DEF-SE) :   9327.995
                           ------------
     Total Interaction (E) :   -173.567 kcal/mol

2. For the reference state 0,1 0,1 0,1 (which represents two carbenes)

    Electrical (ES+POL+SE) :  -7878.192
      Charge Transfer (CT) :   -918.005
          Core (XC+DEF-SE) :   8473.018
                           ------------
     Total Interaction (E) :   -323.179 kcal/mol

So this classical C=C double bond partitions into two interacting triplet carbenes, with a spin flip to align their interaction. Now for nitrosobenzene.

1. For the reference state 0,1 0,1 0,1 (which represents two nitrosobenzenes each with a lone pair of electrons)

   Electrical (ES+POL+SE) : -18230.176
      Charge Transfer (CT) :   -818.925
          Core (XC+DEF-SE) :  19021.537
                           ------------
     Total Interaction (E) :    -27.564 kcal/mol

2. For the reference state 0,1 0,3 0,-3

   Electrical (ES+POL+SE) : -17567.592
      Charge Transfer (CT) :   -677.676
          Core (XC+DEF-SE) :  18197.205
                           ------------
     Total Interaction (E) :    -48.063 kcal/mol

This shows completely different behaviour for the nitrosobenzene dimer and (effectively) the phenyl carbene dimer, with a different reference state for the two species. The electrical and charge transfer terms for the former are much larger than for the latter and this analysis does indeed conform the supposition made at the start that the N=N bond in nitrosobenzene dimer is indeed very unusual and very weak! Perhaps the weakest double bond known? If there are other candidates, I would love to hear about them!

Finally, I note that the relatively low NEDA energy for a triplet reference state for the nitrosobenzene dimer also matches with the observation made previously[1] that open shell (biradical) wavefunctions are needed to describe the curly arrows for the process.

Energy decomposition analysis is a good tool to have in one’s toolbox for analysing molecular behaviour and no doubt I will use it more in the future! Next, tetra-t-butylethene!

This post has DOI: 10.59350/rzepa.29383

References

1. H. Rzepa, "Mechanism of the dimerisation of Nitrosobenzene.", 2025. https://doi.org/10.59350/rzepa.28849
2. K.G. Orrell, V. Šik, and D. Stephenson, "Study of the monomer‐dimer equilibrium of nitrosobenzene using multinuclear one‐ and two‐dimensional NMR techniques", Magnetic Resonance in Chemistry, vol. 25, pp. 1007-1011, 1987. https://doi.org/10.1002/mrc.1260251118
3. E.D. Glendening, and A. Streitwieser, "Natural energy decomposition analysis: An energy partitioning procedure for molecular interactions with application to weak hydrogen bonding, strong ionic, and moderate donor–acceptor interactions", The Journal of Chemical Physics, vol. 100, pp. 2900-2909, 1994. https://doi.org/10.1063/1.466432
4. H. Rzepa, "The mysterious N=N double bond in nitrosobenzene dimer.", 2025. https://doi.org/10.14469/hpc/15455
5. C.R. Landis, R.P. Hughes, and F. Weinhold, "Bonding Analysis of TM(cAAC)₂ (TM = Cu, Ag, and Au) and the Importance of Reference State", Organometallics, vol. 34, pp. 3442-3449, 2015. https://doi.org/10.1021/acs.organomet.5b00429
